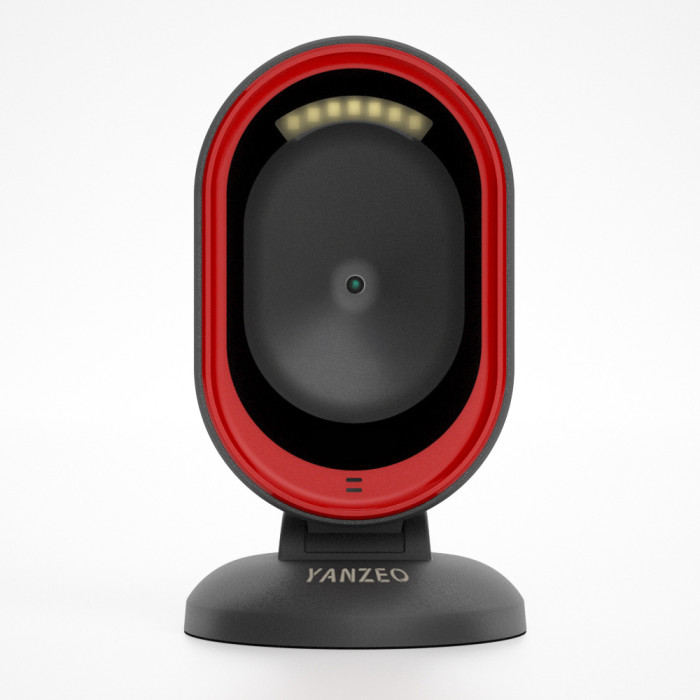

YANZEO YX30‑1000A 2D Desktop Barcode Scanning Platform

Scan mode

Auto-sensing/continuous scanning

Communication interface

USB-HID keyboard, USB-COM virtual serial port, RS232 serial port (optional).

Interface type

USB TYPE-B

Prompt way

Buzzer, LED light

How it's set up

Press the button to set it, and manually scan the setting code in turn

Housing material

ABS+PC

Cable standards

Straight line 1.3m

Exterior dimensions

148mm×87mm×87mm (product); 165mm×100mm×110mm (outer packing)

Weight

Net weight 228g; Gross weight 364g

Performance parameters

The type of scan

CMOS global exposure

Resolution

64 0× 48 0

Light source

617nm red LED

Scan angle

± 60°, ± 54°, 360° (left and right, front and back, rotating).

Scan rate

120 frames/sec

Field of view

48° (H) x 30° (V)

Print contrast

20% minimum

Decode the kind

1D:EAN- 13 ， EAN-8 ， UPC-A ， UPC-E ， ISSN ， ISBN ， CodaBar ， Code 128 ， Code93 ， ITF- 14 ， ITF-6 ， Interleaved 2 of 5 ， Industrial 2 of 5 ， Matrix 2 of 5 ， GS1 Databar(RSS) ， Code 39 ， Code 11 ， MSI-Plessey ， etc

2D: QR Code ， Data Matrix ， PDF417 ， Micro QR ， Aztec ， etc

Minimum resolution

1D 3mil 2D 5mil

Electrical parameters

Input voltage

DC 5V±10%

Current

Operating: 240 mAh; Standby: 190 mAh

Environmental parameters

Temperature

-10°C~+50°C(Working); -20°C~+70°C (storage).

Humidity

5%-95% non-condensing
