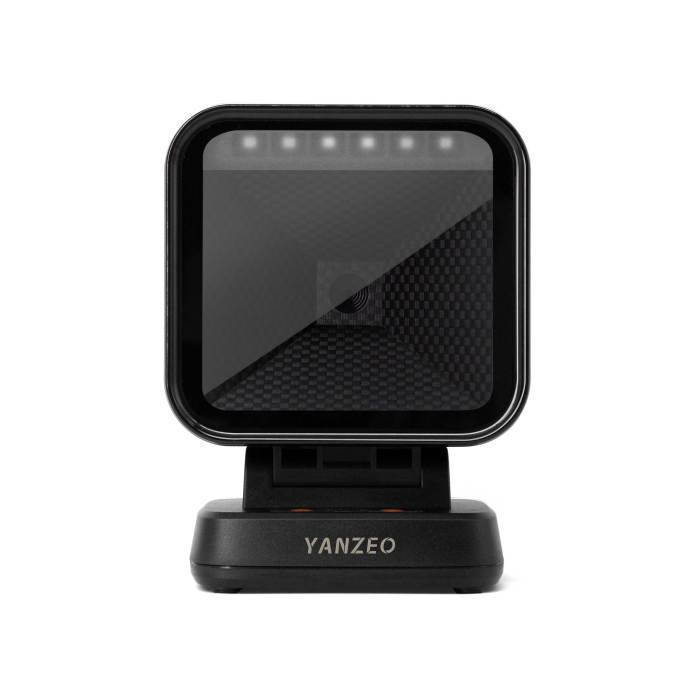

YANZEO YX1 High‑Performance 2D Desktop Barcode Scanning Platform Large Window s for Retail Supermarket POS

Share
Categories	Fixed Barcode Scanners
Brand	Yanzeo Pro RFID & BarCode Solutions
Model	YX1
Scan Mode	Auto‑sensing / Continuous Scanning
Indicator Light	Soft‑bright LED Light
Window Feature	Large Scanning Window
Material	ABS + PC
FOB port	Guangzhou
Terms of Payment	T/T, Paypal

Detail Information

Physical parameters
Scan mode	Auto-sensing/continuous scanning
Communication interface	USB-HID keyboard, USB-COM virtual serial port, RS232 serial port
Interface type	USB TYPE-B
Prompt mode	Buzzers, LED lights
Set up way	Press the button to set, manually scan the setting code in turn
Shell material	ABS+PC
Cable standards	Straight line 1m
Exterior dimensions	122mm×160mm×76mm
Weight	312g (without cable).
Performance parameters
Scan type	CMOS global exposure
Differentiation	800*600
Light source	617nm red LED
Scan angle	± 60°, ±54°, 360° (left and right, front and back, rotation).
Scan rate	20 cm/s
Field of view angle	48° (H) x 30° (V)
Print contrast	Minimum 20%.
Decoding Types	1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile phone screen reading
Minimum resolution	4 MIL
Electrical parameters
Input voltage	DC 5V±10%
Current	Working: 240 mAh; Standby: 190 mAh
Environment parameters
Temperature	0°C-50°C (working); -20°C~+70°C (storage).
Humidity	5%-95% non-condensing
