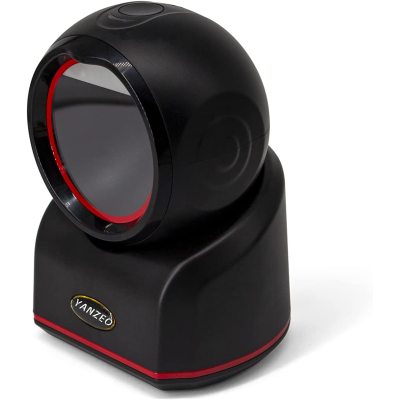

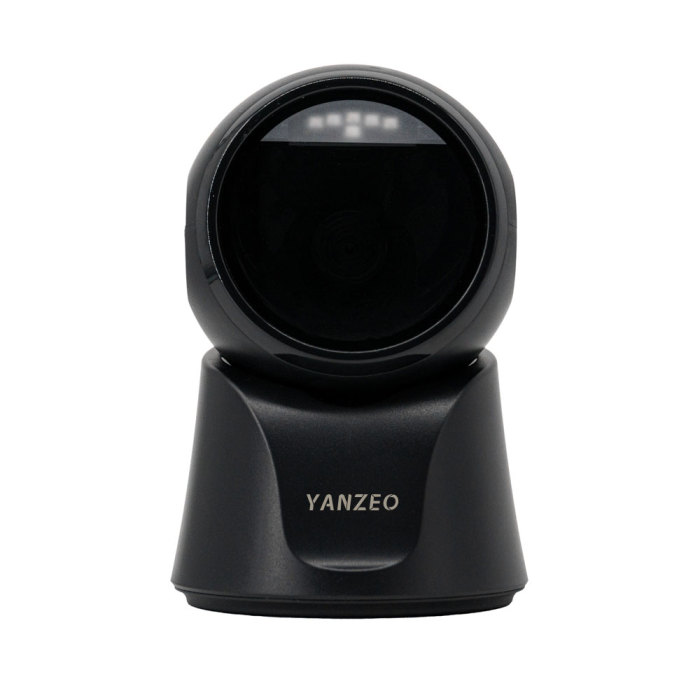

YANZEO YX13‑1000A Hands‑Free 2D Desktop Barcode Scanner Platform 120fps USB Wired for POS

Physical parameters

Scan mode

Automatic sensing / continuous scanning

Communication interface

USB-HID keyboard, USB-COM virtual serial port, RS232 serial port (optional).

Interface type

USB TYPE-B

Tips and methods

Buzzers, LED lights

Setup method

Button settings, manually scan the settings code one by one

Shell material

ABS+PC

Cable standards

Straight line 1.35m

Appearance dimensions

156mm×103.5mm×103.5mm (product); 170mm×115mm×115mm (outer packaging)

Weight

Net weight: 270g; Gross weight: 355g

Performance parameters

Scanning type

CMOS full exposure

Resolution rate

640×480

Light source

617nm red LED beam

Scanning angle

± 60°, ± 54°, 360° (left-right, forward-backward, rotation).

Scanning speed

120 frames per second

Field of view

48° (H) x 30° (V)

Print contrast

Minimum 20%

Decoding types

1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, , Plessey,

2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, Aztec Code

Minimum resolution

一维5mil 二维7mil

Depth of field

QR (20mil)

QR Payment Code (Mobile Code)

Data Matrix (10mil)

PDF 417 (7mil)

0~230mm

0~290mm

0 ~ 45mm

0~130mm

EAN-13(13mil)

Code 39(8mil)

Code 128(7mil)

0~2 7 0mm

0~ 18 0mm

0 ~140 mm

Electrical parameters

Input voltage

DC 5V±10%

Electric current

Operation: 240 mAh; Standby: 190mAh

Environmental parameters

Temperature

0°C-50°C (operating); -20°C~+70°C (storage).

Humidity

5%-95% non-condensing
