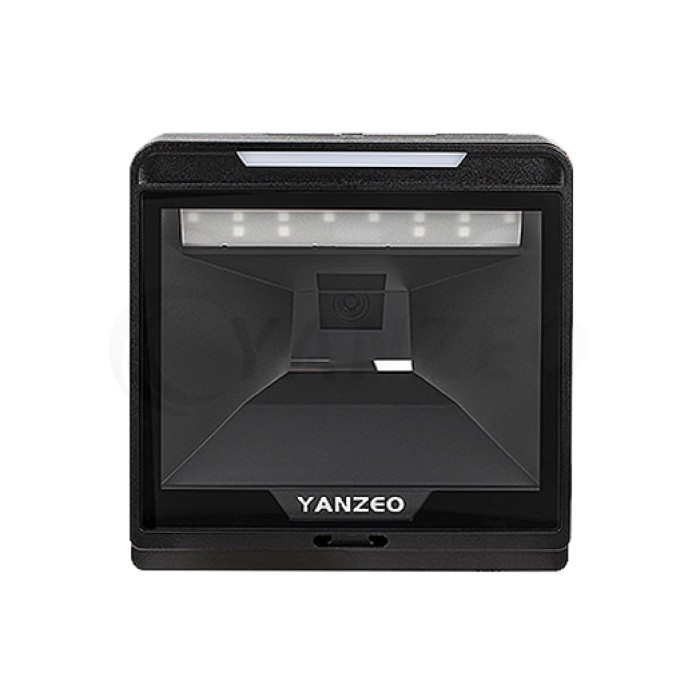

2D Barcode Scanner| Yanzeo YS868I| Desktop Barcode Reader Omnidirectional Square 2D Million Pixels USB And RS232 Interface

2D Barcode Scanner| Yanzeo YS868I| Desktop Barcode Reader Omnidirectional Square 2D Million Pixels USB And RS232 Interface

2D Barcode Scanner| Yanzeo YS868I| Desktop Barcode Reader Omnidirectional Square 2D Million Pixels USB And RS232 Interface
2D Barcode Scanner| Yanzeo YS868I| Desktop Barcode Reader Omnidirectional Square 2D Million Pixels USB And RS232 Interface2D Barcode Scanner| Yanzeo YS868I| Desktop Barcode Reader Omnidirectional Square 2D Million Pixels USB And RS232 Interface2D Barcode Scanner| Yanzeo YS868I| Desktop Barcode Reader Omnidirectional Square 2D Million Pixels USB And RS232 Interface2D Barcode Scanner| Yanzeo YS868I| Desktop Barcode Reader Omnidirectional Square 2D Million Pixels USB And RS232 Interface2D Barcode Scanner| Yanzeo YS868I| Desktop Barcode Reader Omnidirectional Square 2D Million Pixels USB And RS232 Interface
CategoriesFixed Bar Code Scanners
BrandYanzeo Pro RFID & BarCode Solutions
ModelYanzeo YS868I
Imager2D imager
Resolving Power1280 pixels(H)*800 pixels(v)
FOB portGuangzhou
Terms of PaymentT/T, Paypal
Update Time2022/9/27
Detail Information

Yanzeo YS868I 2D Barcode Scanner Desktop barcode reader Omnidirectional Square 2D Million pixels USB and RS232 interface






Technical Specification

OPERATIONAL PARAMETER
Resolving Power 1280 pixels(H)*800 pixels(v)
Light Source Illumination: 617 nm LED
Field of view 51° (H) x 34.5° (V)
Host System Interfaces USB 1.1 (HID Keyboard,Virtual COM Port) RS-232 (9.6~115.2Kbps)
Read mode Manual /Auto sensor
Print Contrast More than 25%
Visual Indicator Blue LED Lights, Buzzer
Interface TTL-232 ,USB (HID-KBW、V-Com)
Depth of Filed 0-200mm @ UPC/EAN 13mil PCS=90%;0-150mm @ QR 20mil PCS=100%
PHYSICAL CHARACTERISTICS
Dimension H x W x L: 153.2mm*75.2mm*151.4 mm(L*W*H)
Package Box size 467mm*462mm*345mm(L*W*H)
Weight 260g (without cable)
Material ABS + PC
Cable Standard 1.8M straight
POWER PARAMETER
Input Voltage 5VDC±10%
Working current 170mA
ENVIRONMENTAL PARAMETER
Operating Temperature 0°C to 50°C
Working Humidity 5% to 95% relative humidity, non-condensing
Storage Temperature -20°C to 60°C
Light Levels 0~4,000Lux(Fluorescence),0~100,000Lux(sunlight)
Drop Durability Designed to withstand 2M drops
BARCODE TYPES
1D:UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13,
ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN
128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/
Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS
Limited, RSS Expanded
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.




What we focused:

1.RFID products(tags,reader writer)

2.Barcode Scanner;

3.PDA,mobile computer


We are looking for agents in various countries around the world. OEM orders and global cooperation are available.We have lot stock and offer stable supply. If any interest, pls contact us. We would reply you within 24 hours as soon as possible.

Note:

1) Every item is tested strictly before shipping
Need the more quantity please contact us,will provide the best price.


Shipping

(1)Fast shipping: Items are usually shipped via FedEx\DHL\UPS Shipping! Delivery time, in usual cases, 3-5 days for delivery in most cities around the world
(2) No combined shipping discount offered and no pick-up service.

(3) Please make sure your address is correct.

(4) If you want to change the address or let us send it directly to your relevant or friends, please kindly contact us when you make off payment.


Feedback & detailed Seller Rating


We are responsible company, only strive for 5 star positive feedback and will try our best to offer the best service to our buyer. Please email us before leaving negative feedback or open any dispute and please give us 3 business days to resolve the complaint to your satisfaction.
Need more please contact us. Will provide the best price and quality.
