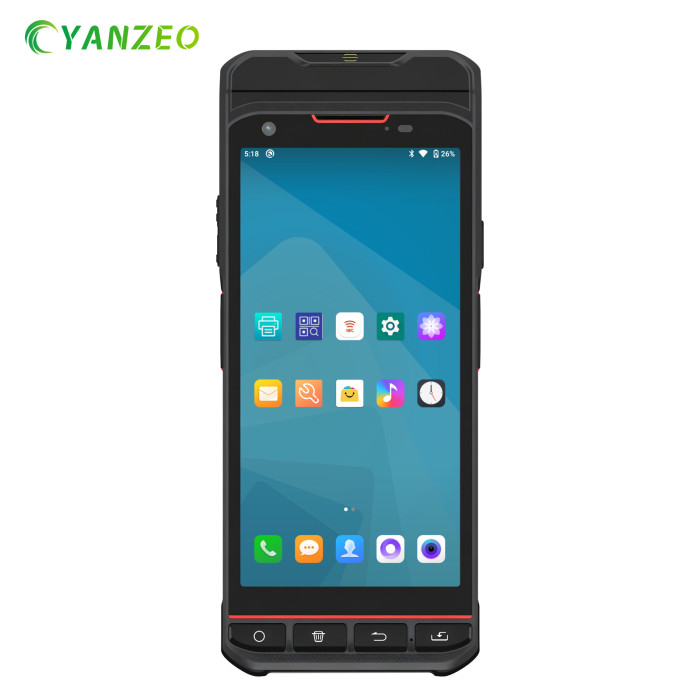

Yanzeo SA510 Android Mobile Terminal with 58mm Honeywell N6703 2D Barcode Scanner for POS Thermal Sticker Printer

Product Model

Yanzeo SA510

Product Type

All-in-One Sticker Printing Handheld Terminal / Mobile Computer

Operating System

Android 10.0 / Android 13.0

Processor (CPU)

MT6765X Octa-core 64-bit 2.3GHz High-Performance Processor

RAM + ROM

2GB + 16GB / 4GB + 64GB (Optional)

Expandable Storage

Micro SD (TF) Card slot, supports up to 256GB

Display Screen

5.5-inch IPS Color Display

Resolution

720 × 1440 HD

Screen Brightness

> 500 cd/m² (Sunlight Readable)

Touch Panel

Multi-touch Capacitive Touchscreen

Printer Type

Built-in Direct Thermal Printer (Supports Sticker / Label Printing)

Printing Speed

Up to 70 mm/s

Resolution / Dots

384 dots

Paper Roll Width

58 mm

Max Paper Roll Diameter

35 mm

Supported Paper Types

Self-adhesive sticker labels, Black mark paper

2D Barcode Engine (Optional)

Honeywell N5703 / N6703 / N6703HD / N6602-W2

1D Barcode Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, Postal Barcodes (USPS Planet/Postnet, Royal Mail, Australian Post, etc.)

2D Barcode Symbologies

PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode, HanXin, Composite, RSS, TLC-39, etc.

NFC Reader (Optional)

13.56MHz, ISO14443A/B, ISO15693 protocols; Read/Write distance: 2 cm – 5 cm

WLAN (Wi-Fi)

Dual-band 2.4GHz / 5GHz, compatible with IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/v

WWAN (4G Cellular)

2G: GSM (850/900/1800/1900MHz)

3G: WCDMA (850/900/1900/2100MHz)

4G FDD: B1/B3/B4/B7/B8/B12/B20

4G TDD: B38/B39/B40/B41

Bluetooth

Bluetooth 5.0 + BLE (Transmission range: 5 – 10 meters)

GNSS Positioning

GPS, Galileo, GLONASS, BeiDou

Battery Capacity

Rechargeable Polymer Battery, 7.6V 2800mAh (Equivalent to 3.8V 5600mAh), Removable

Standby Time

> 350 Hours

Charging Time

3 – 4 Hours (Standard Power Adapter & USB Cable)

Dimensions

179 mm × 74.5 mm × 22.5 mm (Thinnest section) / 49.5 mm (Printer section)

Weight

< 500 g (Varies by device functional configuration)

Card Slots

1 × Micro SIM slot, 1 × Micro SD (TF) slot, 2 × PSAM slots (Optional)

Interfaces

1 × Type-C USB with OTG function support

Physical Buttons

Main: Home, Delete, Back, Confirm

Side: Power, Volume +/-, 2 × Scan Trigger Buttons

Audio & Sensors

Loudspeaker (>93dB at 10cm), Microphone, Receiver;

Gravity Sensor, Ambient Light Sensor, Proximity Sensor, Vibration Motor

Operating Temperature

-20°C to 55°C

Storage Temperature

-40°C to 70°C

Humidity

5% RH - 95% RH (Non-condensing)

Drop & Tumble Standard

Withstands 1.2 m 6-sided drops onto marble; Continuous 0.5 m 6-sided rolling test

Protection Rating

IP54 Sealing Rating

System Languages

Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, Singaporean, etc.

Certifications

CE, ROHS, REACH Compliant
