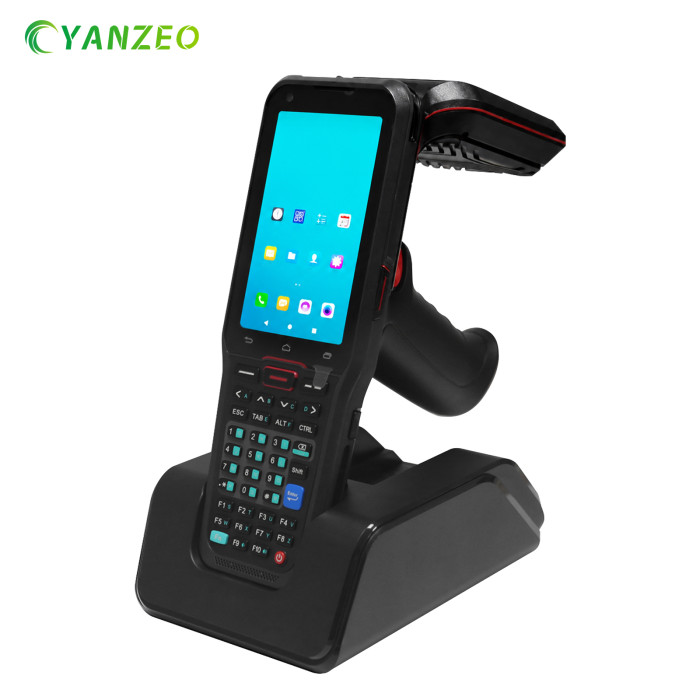

Yanzeo SR410 Handheld RFID PDA 13m Long-Range UHF（Impinj R2000）Zebra SE5500/Honeywell N5703 Scan Engine 35-Key for Warehouse Logistics

Product Overview

Take control of your supply chain and warehouse inventory with the Yanzeo SR410 Rugged Mobile Terminal. Designed to streamline high-volume scanning and long-range RFID tag reading, the SR410 delivers enterprise-class data capture in a rugged, ergonomic form factor equipped with a comfortable pistol grip.

Powered by an 8-core 64-bit processor running Android (upgradable to Android 13), the SR410 seamlessly bridges raw performance and affordability, making it an ideal upgrade or cost-effective fleet expansion for modern logistics operations.

Key Features

• Industry-Leading Scan Engines: Choose from genuine Zebra SE5500 extended-range or Honeywell N5703/6803 2D imager engines for rapid 1D/2D barcode capturing—even on damaged, dirty, or reflective labels.

• 13-Meter Extended UHF RFID Range: Powered by the high-performance Impinj Indy R2000 chip, the SR410 rapidly reads batch RFID tags at distances from 0 to 13 meters, dramatically speeding up warehouse stocktaking.

• Physical 35-Key Keypad + Touchscreen: Features a responsive 4.0-inch display (500+ cd/m² brightness for clear visibility) paired with 35 physical keys and dedicated dual side scan buttons for high-speed, mistake-free manual data entry.

• Full Mobile Connectivity: Built-in Dual NANO SIM slots supporting 4G LTE All-Netcom, dual-band Wi-Fi (2.4GHz/5GHz), Bluetooth 5.0 BLE, and multi-constellation GNSS (GPS, Galileo, BeiDou, Glonass) ensure your field workers stay connected anywhere.

• Built for Demanding Work Environments: Ruggedized construction operating reliably between -20°C to 55°C, complete with Type-C USB OTG support and customizable PSAM security expansion.

• Technical Specifications

• Category	Specification Details
  Brand & Model	Yanzeo SR410
  Operating System	Android 10.0 (Adaptable / Upgradable to Android 13.0)
  Google Services	Full GMS (Google Mobile Services)
  Processor	MT6765X Octa-Core 64-bit CPU
  Memory & Storage	2GB RAM + 16GB ROM / 4GB RAM + 64GB ROM (MicroSD / TF Card expansion up to 128GB)
  Display	4.0-inch TN Display, 480 × 800 Resolution, Brightness > 500 cd/m²
  Physical Keypad	35 Soft/Hard Rubber Keys, Left Side Scan Key × 1, Right Side Scan Key × 1
  2D Barcode Scanner (Optional)	Zebra SE5500 / Honeywell N5703 / Honeywell 6803/ Yanzeo S720
  UHF RFID Engine (Optional)	Impinj Indy R2000 Chip Frequency: 920-925MHz (Global Frequencies Customizable) Read Distance: 0–13 meters
  NFC (Optional)	13.56MHz, ISO14443A/B, ISO15693 protocols, Read Distance: 2cm–5cm
  Cellular Communication	4G Full Netcom (Dual NANO SIM Slots)
  Wi-Fi & Bluetooth	Dual-band Wi-Fi 2.4GHz / 5GHz (IEEE 802.11 a/b/g/n/ac), Bluetooth 5.0 + BLE (5–10m transmission)
  Positioning (GNSS)	GPS, Galileo, BeiDou, Glonass
  Cameras	Front 2.0MP HD Camera, Rear 8.0MP HD Camera
  Interfaces & Expansion	Type-C USB × 1 (OTG Supported), POGO Pin × 1, TF Slot × 1 (Optional PSAM)
  Audio	Loudspeaker > 87dB (tested at 10cm)
  Dimensions	201.8 mm × 72 mm × 140 mm (including pistol grip)
  Operating Temperature	Working: -20°C to 55°C | Storage: -40°C to 70°C
  Warranty Period	One year
