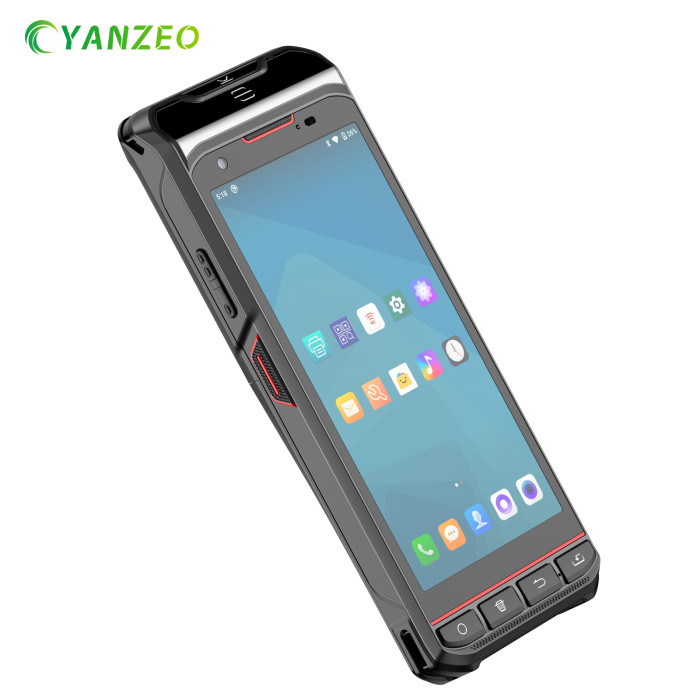

Yanzeo SH510 All-in-One Enterprise Mobile Computer Integrated UHF/LF RFID Reader & Honeywell N6703 2D Imager Android 13 for Logistics Retail & Field Service

Product Overview

The Yanzeo SH510 sets a new benchmark for rugged mobile computing by delivering premium enterprise features without the premium price tag. Designed to streamline operations from the shop floor to the warehouse dock, the SH510 delivers enterprise-class scanning accuracy, extensive wireless coverage, and customizable hardware options to match your exact workflow requirements.

Key Features

•


• Integrated Genuine Honeywell 2D Imager: Equipped with world-class Honeywell scan engines (N5703 / N6703 / N6602), providing lightning-fast decoding for damaged, poorly printed, curved, or on-screen 1D/2D barcodes.

• All-in-One RFID & Data Capture Flexibility: Beyond standard NFC, the SH510 offers optional long-range UHF RFID (read range >1.5m), LF RFID (125K/134.2K FDX-B for animal tagging/industrial tracking), and dual PSAM card slots for encrypted transactions.

• High-Efficiency 7.6V Power System: Features a high-voltage 7.6V 2800mAh rechargeable polymer battery (equivalent to 5600mAh @ 3.8V), ensuring consistent power output, lower thermal generation, and stable long-shift operation even under intensive scanning and RFID workloads.

• Sunlight-Readable 5.5-inch HD Display: With brightness exceeding 500 nits and a 720×1440 IPS panel, workers enjoy crisp visibility outdoors and in brightly lit warehouse environments.

• Industrial-Grade Ruggedness: Rated IP66 for dust and water resistance, and engineered to withstand multiple 1.5-meter drops onto concrete surfaces across harsh operating temperatures (-20°C to 55°C).

• Seamless Wireless Connectivity: Dual-band 2.4GHz/5GHz Wi-Fi with fast seamless roaming protocols (802.11 a/b/g/n/d/e/h/i/j/k/r/v), high-speed 4G LTE, Bluetooth 5.0, and multi-constellation GNSS (GPS, Galileo, Glonass, Beidou).

Technical Specifications

Category	Specification Details
Brand & Model	Yanzeo SH510
Operating System	Android 10.0 / Android 13.0
Google Services	Full GMS (Google Mobile Services) Support
Processor (CPU)	MT6765X Octa-Core 64-bit High-Performance Processor
Memory / Storage	2GB RAM + 16GB ROM / 4GB RAM + 64GB ROM (MicroSD/TF expansion up to 256GB)
Display	5.5-inch IPS Touchscreen, 720 × 1440 HD Resolution
Screen Brightness	> 500 cd/m² (Sunlight Readable)
Cellular Network	4G Full Netcom (LTE / WCDMA / GSM)
Wi-Fi	Dual-Band Wi-Fi 2.4GHz / 5.0GHz, supports IEEE 802.11 a/b/g/n/d/e/h/i/j/k/r/v fast roaming
Bluetooth	Bluetooth 5.0 (Transmission Range: 5–10 meters)
Positioning (GNSS)	GPS, GLONASS, Galileo, BeiDou
Main Camera	13.0 MP Rear Camera with Auto-Focus; 2.0 MP Front Camera
Audio & Speaker	High-volume industrial speaker > 96dB (tested at 10cm)
Physical Interface	1 × Type-C USB (supports OTG data & fast charging)
Card Slots	1 × Nano SIM slot, 1 × TF card slot, 2 × PSAM slots (Optional)
Battery Capacity	Rechargeable Polymer Battery, 7.6V 2800mAh (High-Voltage System)
Dimensions & Weight	179 mm × 74.5 mm × 23.2 mm
Drop Specification	Multiple drops from 1.5 m (5 ft) to concrete across operating temperature range
Ingress Protection	IP66 (Dust-tight and protected against heavy seas or water jets)
Operating Temperature	-20°C to 55°C (-4°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)

Optional Modules & Configurations
