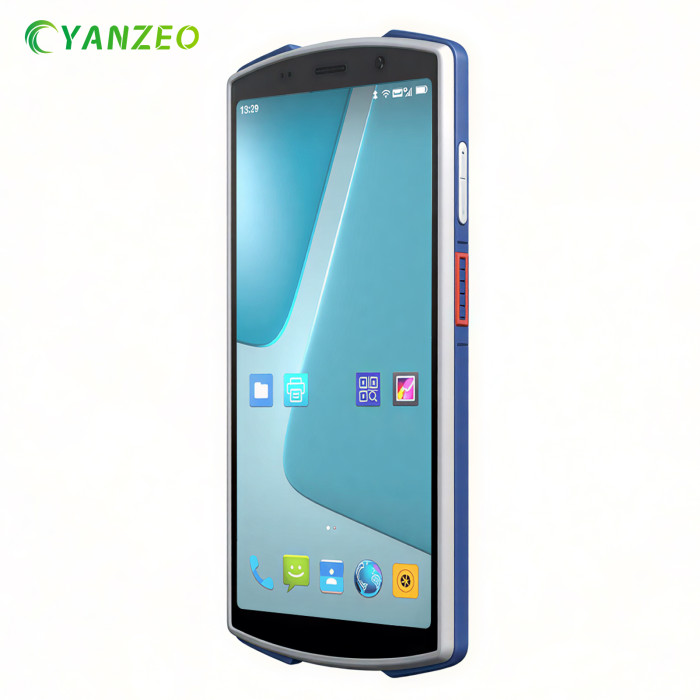

Yanzeo SC610 5G Rugged Android Handheld PDA Barcode Scanner Honeywell 2D Engine & NFC for Healthcare Hospital Care

Product Overview

The Yanzeo SC610 is an enterprise-grade 5G industrial medical handheld terminal built for high-demand healthcare, hospital nursing, logistics, and retail operations. Powered by a 64-bit Octa-Core processor (Cortex-A76/A55) running Android 13 with 6GB RAM + 128GB ROM, it ensures seamless data processing and real-time network sync via 5G Full Netcom and Dual-Band Wi-Fi.

Featuring a bright 5.93-inch IPS touchscreen (>450 cd/m²), IP67 dust and waterproof sealing, and a long-lasting 4200mAh battery, the SC610 delivers robust reliability. It can be optionally equipped with authentic Honeywell high-speed 2D scan engines (N6703 / N6602-W2 / N6803) and a 13.56MHz NFC module, offering exceptional scan accuracy for patient wristbands, medical inventory, and barcode data capture.

Key Features

• Flagship Processing & Memory

  Runs on modern Android 13 with a 64-bit Cortex-A76/A55 Octa-core processor. Comes standard with 6GB RAM + 128GB ROM, effortlessly handling resource-intensive WMS/ERP applications without latency.

• Expansive Display in an Ultra-Slim Body

  Features a large 5.93-inch display (720x1440) with >450cd/m2 brightness in an incredibly sleek body measuring just 12.3mm thick, significantly reducing operator fatigue.

• Enterprise-Grade Ruggedness

  Certified with an IP66 protection rating against dust and water jets, and engineered to withstand multiple 1.2-meter drops onto concrete.

• Flexible Modular Customization

  Supports high-performance optional modules, including Honeywell 2D barcode scan engines (N6703/N6602-W2/N6803) and 13.56MHz NFC for seamless operational scalability.

• Technical Specifications

• Category	Specification Details
  Brand & Model	Yanzeo SC610
  Operating System	Android 13
  Google Services	Full GMS (Google Mobile Services)
  Processor	64-bit Octa-Core (Cortex-A76 / A55)
  Memory & Storage	6GB RAM + 128GB ROM
  Display	5.93-inch IPS Touchscreen, 720 × 1440 Resolution, Brightness > 450 cd/m²
  Cellular Network	5G Full Netcom
  Wi-Fi	Dual-Band 2.4GHz / 5GHz, supports IEEE 802.11 a/b/g/n/ac
  Bluetooth	Bluetooth 5.0 (Range: 5–10 meters)
  GNSS / Positioning	GPS, Galileo, GLONASS, BeiDou
  Camera System	Rear: 13MP High-Definition Camera   Front: 5MP Color Camera
  SIM Card Slot	Nano SIM Card
  Physical Buttons	Silicone Keys: Power key, Volume +/- keys, Dual Scan side keys (×2)
  Audio / Speaker	Built-in Speaker > 88dB (Tested at 10cm)
  Interface Port	Type-C USB × 1 (Supports OTG function)
  Battery	Rechargeable Polymer Battery (3.8V 4200mAh)
  Industrial Durability	IP Rating: IP67 Dustproof & Waterproof   Drop Spec: Multiple 1.2m drops to concrete floor
  Dimensions	164.5 mm × 79.4 mm × 12.3 mm
  Environmental Specs	Operating Temp: -20°C to 55°C   Storage Temp: -40°C to 70°C
  Optional Configurations	2D Barcode Engine: Honeywell N6703 / N6602-W2 / N6803   NFC Module: 13.56MHz (ISO14443A/B, ISO15693, Read Distance: 2cm–5cm)
