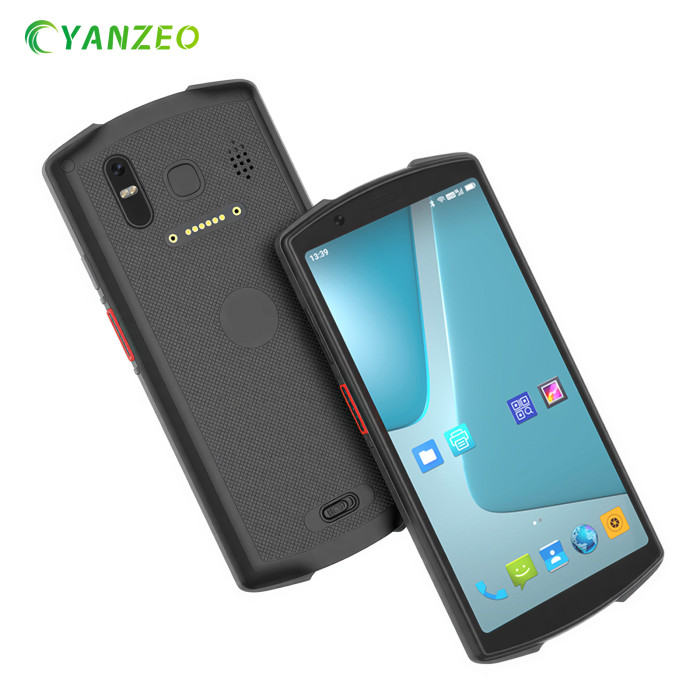

Yanzeo SC620 5G Handheld Terminal PDA Biometric Fingerprint Reader Honeywell N6703 2D Barcode Scanner for WMS Order Picking

Product Overview

Empower your workforce with the Yanzeo SC620 5G Smart Handheld Terminal. Engineered for modern logistics, retail, and field service operations, the SC620 seamlessly bridges the gap between consumer smartphone aesthetics and enterprise-grade durability. It leverages high-speed 5G connectivity and offers versatile optional configurations, including high-frequency NFC and top-tier barcode scanning modules, to meet the exact demands of your enterprise workflows.

Key Features

• Flagship Processing & Memory

  Runs on modern Android 13 with a 64-bit Cortex-A76/A55 Octa-core processor. Comes standard with 6GB RAM + 128GB ROM, effortlessly handling resource-intensive WMS/ERP applications without latency.

• Expansive Display in an Ultra-Slim Body

  Features a large 5.93-inch display (720x1440) with >450cd/m2 brightness in an incredibly sleek body measuring just 12.3mm thick, significantly reducing operator fatigue.

• Enterprise-Grade Ruggedness

  Certified with an IP66 protection rating against dust and water jets, and engineered to withstand multiple 1.2-meter drops onto concrete.

• Flexible Modular Customization

  Supports high-performance optional modules, including Honeywell 2D barcode scan engines (N6703/N6602-W2/N6803) and 13.56MHz NFC for seamless operational scalability.

• Technical Specifications

•


  Category	Specification Details
  Brand & Model	Yanzeo SC620
  Operating System	Android 13
  Google Services	Full GMS (Google Mobile Services)
  Processor	Cortex-A76/A55 Octa-Core 64-bit
  Memory & Storage	6GB RAM + 128GB ROM
  Display	5.93-inch, 720×1440 Resolution, >450 cd/m² Brightness
  Dimensions	164.5mm × 79.4mm × 12.3mm
  Cellular Network	5G Full Netcom
  Wi-Fi	Dual-band 2.4GHz / 5GHz (IEEE 802.11 a/b/g/n/ac)
  Bluetooth	Bluetooth 5.0 (Transmission Range: 5–10m)
  Positioning (GNSS)	GPS, Galileo, Glonass, Beidou
  Cameras	Rear: 13MP High-Definition Camera   Front: 5MP Color Camera
  Audio & Keys	Speaker >88dB (Test distance: 10cm)   Silicone Keys: Power Key, Volume +/-, Scan Key × 2
  Battery	3.8V 4200mAh Removable Rechargeable Polymer Battery
  Interfaces & Slots	Type-C USB × 1 (OTG Supported), Nano SIM Slot
  Protection Rating	IP66 Sealing
  Drop Specification	Multiple 1.2m drops to concrete
  Operating Temp	-20°C to 55°C
  Storage Temp	-40°C to 70°C
  2D Barcode Scanner Engine	Choice of Honeywell Engines:   • Honeywell N6703   • Honeywell N6602-W2   • Honeywell N6803
  NFC Reader	• Frequency: 13.56MHz   • Protocols: ISO14443A/B, ISO15693   • Reading Distance: 2cm – 5cm
