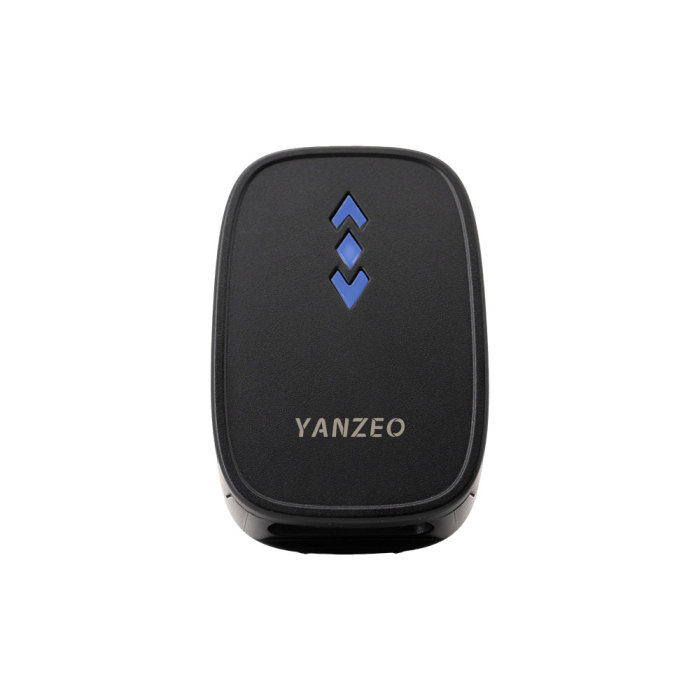

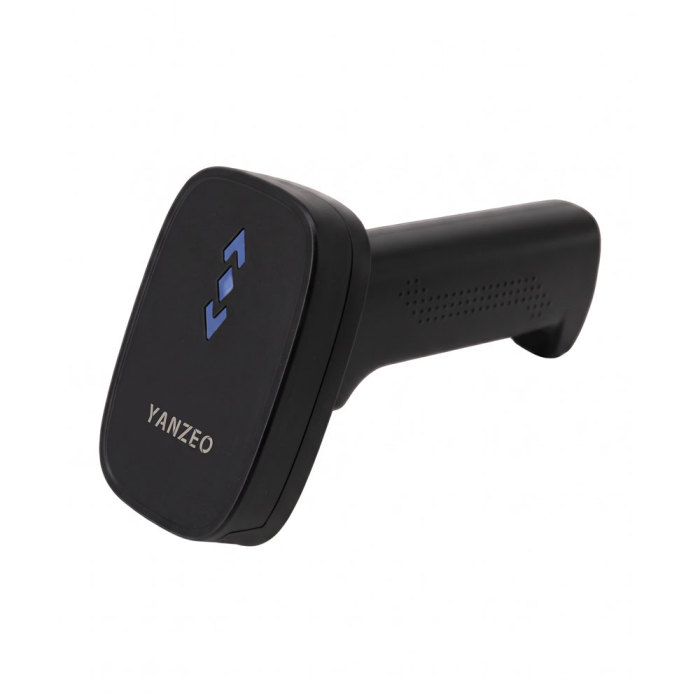

YANZEO YU60 High Speed 120fps 2D Wired Barcode Scanner IP54 Vibration Alert QR Reader for Logistics POS System

Physical parameters

Scan mode

Key trigger/auto-sensing/continuous scanning

Communication interface

USB-HID keyboard/USB-COM virtual serial port/RS232 serial port (optional).

Interface type

USB TYPE-B

Prompt method

Buzzer, LED light, vibration motor

How to set it up

Scan the setting code manually in turn

Housing material

ABS+PC

Cable standard

Straight line 1.6m

Appearance dimensions

152mm×94mm×61mm (product);

weight

Performance parameters

Sensors

500,000 global CMOS

Discrimination rate

800*600

light source

White LED

Scan angle

± 60°, ± 60°, 360° (elevation, declination, turning angle).

Scan rate

120 frames per second

Field of view

48° (H) x 30° (V)

Printing contrast

Minimum 15%

Decoding types

1D: EAN- 13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, CodaBar, MSI-Plessey, GS1 Databar(RSS), etc

2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc，支持手机屏幕读码

Minimum resolution

1D code 3MIL; QR code 5MIL

depth of view

QR (7k)

QR payment code (mobile code)

Data Matrix  （ 10mil ）

PDF 417 (6.7k)

EAN-13 (13.3k)

Code 39  （ 8.3mil ）

30~110mm

40~500mm

20- 150mm

20- 150mm

30~300mm

40~235mm

Electrical parameters

Input voltage

DC 5V±10%

current

Working: 350 mAh; Standby: 130 mAh

Environmental parameters

Temperature

-10°C~50°C (operating); -40°C~+60°C (storage).

Humidity

5%-95% non-condensation

Ambient brightness

Max.5,000 Lux (fluorescent)

Seismic resistance

It can withstand a drop from the air up to 1.5m
