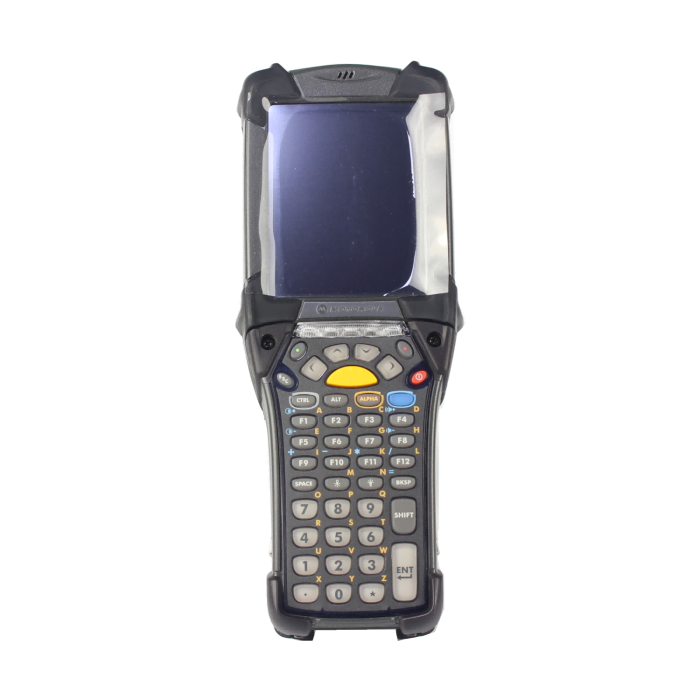

MC9190-GJ0SWFQA6WR Motorola Zebra Handheld Mobile Computer PDA Barcode Scanner for Warehousing,Commidity Management,etc.

MC9190-GJ0SWFQA6WR Motorola Zebra Handheld Mobile Computer PDA Barcode Scanner for Warehousing,Commidity Management,etc.

MC9190-GJ0SWFQA6WR Motorola Zebra Handheld Mobile Computer PDA Barcode Scanner for Warehousing,Commidity Management,etc.
MC9190-GJ0SWFQA6WR Motorola Zebra Handheld Mobile Computer PDA Barcode Scanner for Warehousing,Commidity Management,etc.MC9190-GJ0SWFQA6WR Motorola Zebra Handheld Mobile Computer PDA Barcode Scanner for Warehousing,Commidity Management,etc.MC9190-GJ0SWFQA6WR Motorola Zebra Handheld Mobile Computer PDA Barcode Scanner for Warehousing,Commidity Management,etc.MC9190-GJ0SWFQA6WR Motorola Zebra Handheld Mobile Computer PDA Barcode Scanner for Warehousing,Commidity Management,etc.
CategoriesZebra Symbol Motorola
BrandYanzeo Pro RFID & BarCode Solutions
ModelMC9190-GJ0SWFQA6WR
FOB portGuangzhou
Terms of PaymentT/T, Paypal
Update TimeMay 24,2024
Detail Information
Specifications
MC9190-G Physical & Environmental Characteristics

Dimensions                9.1 in. L x 3.6 in. W x 7.6 in. H
                                        23.1 cm L x 9.1 cm W x 19.3 cm H

Weight                         27 oz./765 g (includes battery)

Keyboard               28-, 43- and 53-key; Terminal Emulation (5250, 3270, VT)

Display                       3.7 in VGA color

Power                        PowerPrecision Lithium ion battery 2200 mAh

Performance Characteristics

CPU                                Marvell PXA320 processor at 806 MHz

Operating System        Microsoft Windows CE 6.0 or Microsoft Windows Mobile 6.5 Classic

Memory                        256MB/1GB

Expansion                SD/MMC Card

App Development         PSDK and EMDK available through Zebra Support Central Web site

Data Capture options SE960: 1-D standard range scan engine SE1524-ER: 1-D extended range scan engine reads up to 45 ft./ 13.72 m away SE4500: Omnidirectional 1-D/2-D imaging engine reads 1-D and 2-D symbols SE4600: Extended range omnidirectional 1-D/2-D imaging engine reads 1-D and 2-D symbols as close as 8 in./20.32 cm and as far as 30 ft./9.14 m SE4500-DL: 1-D/2-D DL imaging engine reads all 1-D and 2-D codes as well as the PDF codes found on driver’s licenses and other identification documents SE4500-HD: 1-D/2-D DPM imaging engine reads a wide variety of DPM marks on metal, plastic and glass surfaces, including: dot peening, laser etching, molding, stamping or casting

Wireless Data Communications

WLAN                            802.11a/b/g

Data Rate                    802.11a: up to 54 Mbps; 802.11b: up to 11 Mbps; 802.11g: up to 54 Mbps

Antenna                            Internal

Frequency Range           All country dependent: 802.11a ‘ 5 GHz; 802.11b ‘ 2.4 GHz; 802.11g ‘ 2.4 GHz

WLAN Security           WPA2 Enterprise, 802.1x; EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP, EAP-FAST ( TLS, MS-CHAPv2, EAP-GTC), WPA2/AES, CCX v4, FIPS 140-2 and IPv6

Bluetooth                    Bluetooth Version 2.1 with EDR


User Environment

Operating Temperature    -4° to 122° F/-20° to 50° C

Charging Temperature     32° to 104° F/0° to 40° C

Storage Temperature     -40° F to 158° F/-40° C to 70° C

Humidity                            5% to 95% non condensing ( Condensation Resistant Configurations Available)

Drop Spec                    Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range; meets and exceeds MIL-STD 810G

Tumble Spec                    2,000 3.28 ft./1 m tumbles at room temperature (4,000 hits) per IEC Tumble Specification

Sealing                            IP64 (electronic enclosure, display and keypad) per IEC Sealing Specification

Electrostatic                       ±15kVdc air discharge; ±8kVdc direct discharge; ±8kVdc indirect discharge
Discharge (ESD)


Voice & Audio

Audio                            High quality speaker, microphone and 2.5mm headset jack

Push-to-Talk                     PTT (client included); wired headset support, PTT will support headset and speakerphone mode

Voice Directed Picking      TekSpeech Pro Certified; Compatible with 3rd party VDP clients
