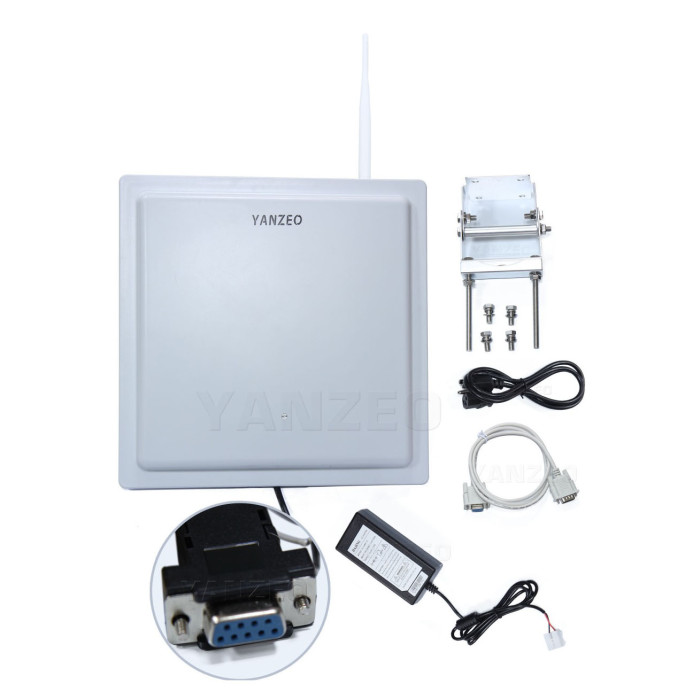

UHF RFID Reader| Yanzeo SI803| 15-30m UHF Integrated Reader Long Range IP67 WIFI RJ45 Network RS232/485 /Wiegand 12dbi Antenna

Categories	Integrated RFID reader
Brand	Yanzeo Pro RFID & BarCode Solutions
Model	Yanzeo SI803
Brand	Yanzeo
Model	SI804
FOB port	Guangzhou
Terms of Payment	T/T, Paypal
Update Time	February 9,2023

Contact Now

Detail Information

UHF RFID Reader| Yanzeo SI803| 15-30m Long Range WIFI IP67 RS232 RS285 RS485 12dbi Antenna UHF Integrated Reader

Note: If need more(better price), pls let us know. Thanks

Yanzeo SI803 is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated 12dBi linear polarized UHF Far Field antenna..Based on proprietary efficient digital signal processing algorithm,the reader is capable of up to 15m Read Range and 6m Write Range

OPERATIONAL PARAMETER
Air interface protocol	ISO18000-6B , ISO18000-6C（EPC GEN2）
GPIO interface	2 GPIO outputs (requires customization)
Read Range	Maximum distance of reading tags: 25m Write tag maximum distance: 6m (related to factors such as transmit power, antenna type, tag type and application environment)
Operating Frequency	International(920～925MHz)
	USA(902～928MHz)
	EUR(865～868MHz)
	Others(Customized Tag)
Frequency Hopping Mode	Broadband frequency hopping (FHSS) or fixed frequency, which can be set by software
Antenna	12dBi linear polarized antenna (built-in)
Working mode	Active mode \ Passive mode \ Answer mode (not recommended)
Communication interface	RS-232 interface \ RS-485 interface
Wiegand interface	Support Wiegand 26, Wiegand 34 , 10/100M Ethernet interface (requires customization) , WIFI , GPRS (customized)
PHYSICAL CHARACTERISTICS
Dimension H x W x L:	450mm450mm120mm(Length x Width x Height)
Net weight	5kg
Material	ABS + PC
POWER PARAMETER
Working voltage	+12V
Power adapter	AC 110 ~ 220V / DC +12V
Power Consumption	<3W
ENVIRONMENTAL PARAMETER
Operating Temperature	-20℃ ~ +60℃(Customized)
Storage Temperature	-40℃ ~ +85℃
ACCESSORIES
Software Pack (Optional)	API Software Development Kits complete with VB,C#Sample Program
