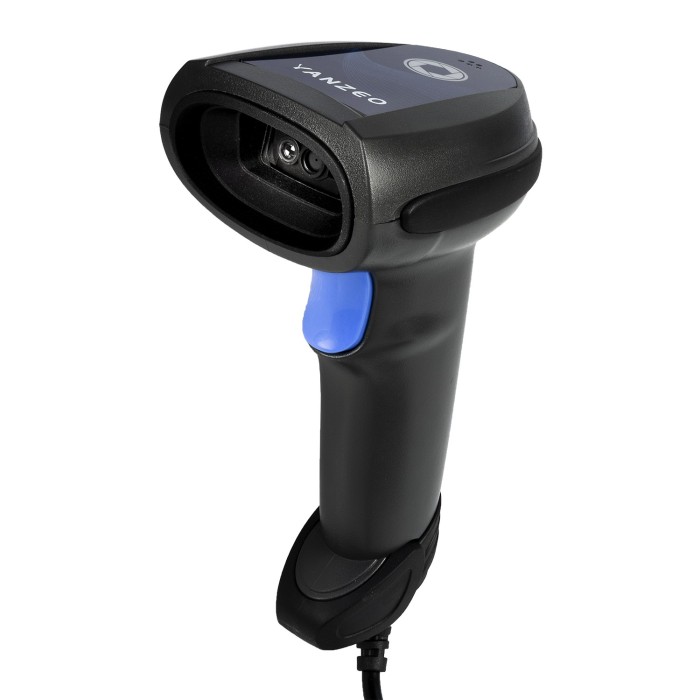

2D OCR Barcode Scanner| Yanzeo E9800 | 1D 2D QR Code Wired Barcode Reader Supporting OCR, USB, TTL-232 And Virtual Serial Port For POS Warehousing

2D OCR Barcode Scanner| Yanzeo E9800 | 1D 2D QR Code Wired Barcode Reader Supporting OCR, USB, TTL-232 And Virtual Serial Port For POS Warehousing

2D OCR Barcode Scanner| Yanzeo E9800 | 1D 2D QR Code Wired Barcode Reader Supporting OCR, USB, TTL-232 And Virtual Serial Port For POS Warehousing
2D OCR Barcode Scanner| Yanzeo E9800 | 1D 2D QR Code Wired Barcode Reader Supporting OCR, USB, TTL-232 And Virtual Serial Port For POS Warehousing2D OCR Barcode Scanner| Yanzeo E9800 | 1D 2D QR Code Wired Barcode Reader Supporting OCR, USB, TTL-232 And Virtual Serial Port For POS Warehousing2D OCR Barcode Scanner| Yanzeo E9800 | 1D 2D QR Code Wired Barcode Reader Supporting OCR, USB, TTL-232 And Virtual Serial Port For POS Warehousing2D OCR Barcode Scanner| Yanzeo E9800 | 1D 2D QR Code Wired Barcode Reader Supporting OCR, USB, TTL-232 And Virtual Serial Port For POS Warehousing2D OCR Barcode Scanner| Yanzeo E9800 | 1D 2D QR Code Wired Barcode Reader Supporting OCR, USB, TTL-232 And Virtual Serial Port For POS Warehousing
CategoriesHandheld Barcode Scanners
BrandYanzeo Pro RFID & BarCode Solutions
ModelYanzeo E9800
BrandYanzeo
ModelOCR 2D Barcode Scanner| Yanzeo E9800 | 1D 2D QR Co
FOB portGuangzhou
Terms of PaymentT/T, Paypal
Update TimeMar 28,2024
Detail Information
OCR 2D Barcode Scanner| Yanzeo E9800 | 1D 2D QR code wired barcode reader Supporting USB, TTL-232 and Virtual serial port for POS Warehousing

Note: If need OCR, pls contact us to add. If need more, better price you have, kindly contact us, Thanks


OCR stands for "Optical Character Recognition." It is a technology that recognizes text within a digital image. It is commonly used to recognize text in scanned documents and images. OCR software can be used to convert a physical paper document, or an image into a machine-readable form to be used for data processing like editing or searching.Know more about OCR?

Feature

● Equipped with OCR, shows great perfomance in data processing like editing or searching, improving efficiency and accuracy(optional)

● Supports USB, TTL-232 and Virtual serial port.

●Plug and play, not need any driver, easy to operate.

●Use Complete dust-proof design to meet more applications.

●Using latest decoder technology, can read all 1D and 2D barcodes.

●Ergonomic design, comfortable operating sense, it is not easy to fatigue.

●Supports to read screen barcodes, such as mobile phones and computers.

●Widely used in Wechat pay and Alipay, can quickly realize the ID and QR codes.

●Blue LED indicator and loud buzzer sound, can quick feedback reading recods.

●Read Micro QR, MicroPDF417,Maxicode, Aztec etc.


OPERATIONAL PARAMETER
Image (pixels) HD
Light Source Aiming:617 nm LED ;illumination:4500K LED
Depth of Filed 40-250mm@UPC/EAN13mil PCS=90%; 20-300mm@QR 20mil PCS=100%
EAN-13(13mil) 30-180mm
Code39(5mil) 0-90mm
Typical Depth of Field PDF417(6.67mil) 5-90mm
Data Matrix(10mil) 0-60mm
QR Code(15mil) 0-130mm
Scan Angle Elevation angle 65°/Tilt angle 30°/Declination 55°
Field of view 34° horizontal, 28° vertical
Read Resolution More than 5 mil
Print Contrast More than 25%
Visual Indicator Blue LED Lights , Double Buzzer
Interface TTL-232, USB (HID-KBW, Virtual serial Port)
PHYSICAL CHARACTERISTICS
Dimension H x W x L: 175mm*66mm*90mm(Length x Width x Height)
Weight 220g (with cable)
Cable Standard 1.8M straight
Material ABS + PC
POWER PARAMETER
Input Voltage 5VDC±10%
Working current 200mA
ENVIRONMENTAL PARAMETER
Operating Temperature -20℃~+60℃
Working Humidity 5% to 95% relative humidity, non-condensing
Storage Temperature -40℃~+70℃
Light Levels 0~100,000Lux(Daylight)
Drop Durability Designed to withstand 2 Meters drop
BARCODE TYPES
1D: UPC/EAN/JAN,UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13,
ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN
128, Code 93, Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code, MSI/
Plessy, China Postal Code,Code 32 (Italian Pharmacode), RSS 14, RSS
Limited, RSS Expanded
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack, Micro QR,DOTCODE.
