UHF RFID Reader| Yanzeo R788| 25m Long Range Outdoor IP67 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated Reader

UHF RFID Reader| Yanzeo R788| 25m Long Range Outdoor IP67 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated Reader

UHF RFID Reader| Yanzeo R788| 25m Long Range Outdoor IP67 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated Reader
UHF RFID Reader| Yanzeo R788| 25m Long Range Outdoor IP67 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated ReaderUHF RFID Reader| Yanzeo R788| 25m Long Range Outdoor IP67 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated ReaderUHF RFID Reader| Yanzeo R788| 25m Long Range Outdoor IP67 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated ReaderUHF RFID Reader| Yanzeo R788| 25m Long Range Outdoor IP67 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated ReaderUHF RFID Reader| Yanzeo R788| 25m Long Range Outdoor IP67 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated Reader
CategoriesIntegrated RFID reader
BrandYanzeo Pro RFID & BarCode Solutions
ModelYanzeo R788
BrandYanzeo
ModelR788
FOB portGuangzhou
Terms of PaymentT/T, Paypal
Update TimeMar 29,2024
Detail Information

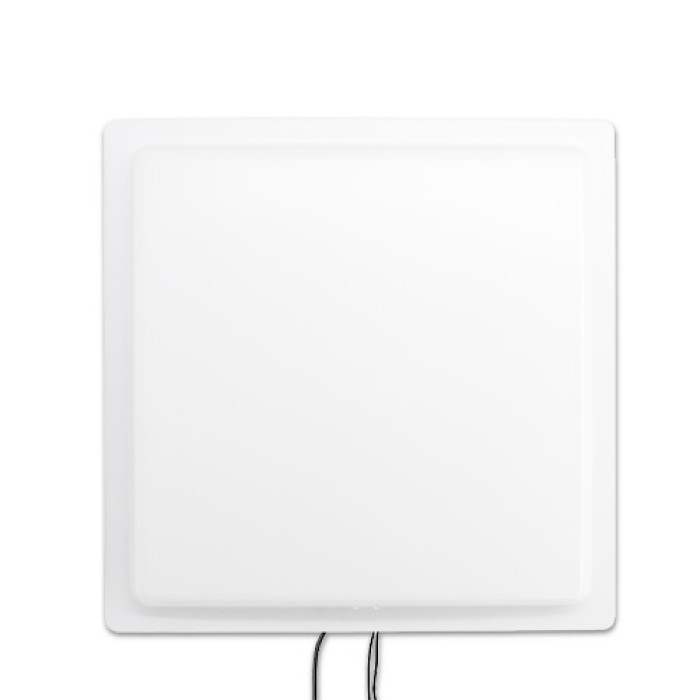

  • Yanzeo R788, UHF RFID Reader Long Range 25m Outdoor, IP67, 12dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated Reader





  • Product specification

  • Support ISO18000-6C (EPC GEN2) international standards;
  • Integrated structure design, beautiful appearance, suitable for outdoor environment;
  • Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
  • Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
  • Recognition speed is fast, and the identification of single label can reach 140 times/second;
  • Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
  • Support development in multiple languages, such as VC, VB, C, etc.
  • Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.

  • Application

  • Warehouse Management
  • Supply Chain Management
  • Vehicle Management
  • Line Management
  • Source Management
  • Asset Management
  • Personnel Management
  • Attendance Management
  • Product Anti-counterfeiting Management

model R788-12DB
Supported protocols ISO18000-6C(EPC GEN2)
working frequency ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized)
Operation mode FHSS
RF power 0~30dBm,Software Programmable
Reading speed Single card average reading is 64bits, less than 6ms,
Software Programmable
Work mode reading Active and reading passive, Software Programmable
Communication Ports N:Wiegand26/34/98, RS232/RS485 ,RJ45 USB
E:Wiegand26/34/98, RS232/RS485,TCP ,RJ45 USB
Input interface 1 way trigger input
Reading range >20m (High power 35m)
Status indicators buzzer
Antenna 12dbi circular polarization antenna
Power supply DC+7~12V
Size 445mm×445mm×35mm
Weight 2.55 Kg(Package:4.65kg)
Operation Temp -20℃~+70℃




What we focused(Zebra,Honeywell,Symobol and self-developed Yanzeo):

1.RFID products(tags,reader writer)

2.Barcode Scanner;

3.PDA,mobile computer

4.Printer parts

We are looking for agents in various countries around the world. OEM orders and global cooperation are available.We have lot stock and offer stable supply. If any interest, pls contact usWe would reply you within 24 hours as soon as possible.


Note:

1) Every item is tested strictly before shipping

Need the more quantity please contact us,will provide the best price.


Shipping

(1)Fast shipping: Items are usually shipped via FedEx\DHL\UPS Shipping! Delivery time, in usual cases, 3-5 days for delivery in most cities around the world

(2) No combined shipping discount offered and no pick-up service.

(3) Please make sure your address is correct.

(4) If you want to change the address or let us send it directly to your relevant or friends, please kindly contact us when you make off payment.




Feedback & detailed Seller Rating

We are responsible company, only strive for 5 star positive feedback and will try our best to offer the best service to our buyer. Please email us before leaving negative feedback or open any dispute and please give us 3 business days to resolve the complaint to your satisfaction.

Need more please contact us. Will provide the best price and quality.
