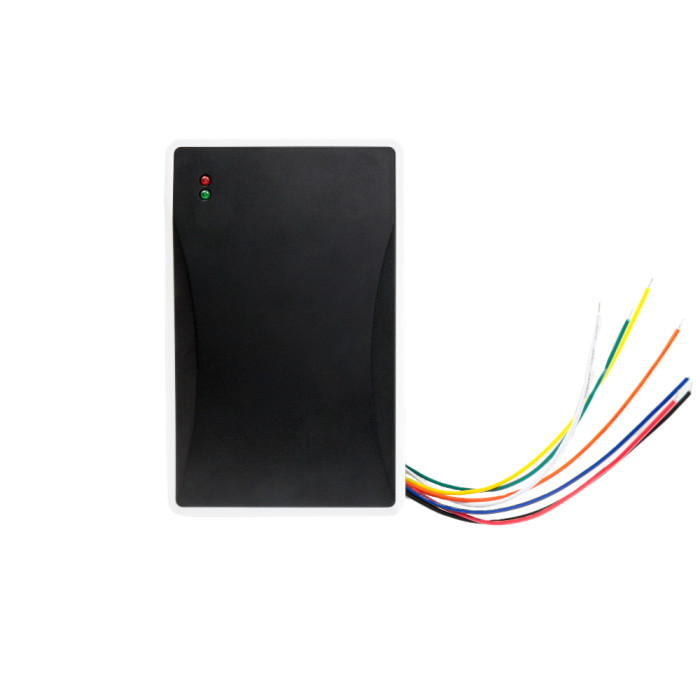

UHF RFID Reader| Yanzeo SR20 860～960MHz Access Control UHF High Performance Integrated RFID Reader
UHF RFID Reader| Yanzeo SR20 860～960MHz Access Control UHF High Performance Integrated RFID Reader
| Categories | Desktop RFID Write Readers |
|---|---|
| Brand | Yanzeo Pro RFID & BarCode Solutions |
| Model | Yanzeo SR20 |
| System Parameter： | ARM7+UHF model |
| Read Range： | >2m |
| Group of reading performance： | >50pcs |
| Support Protocol： | Fixed Frequency Band and FHSS Software Programmabl |
| Operating Mode： | 0-30dBm（Adjustable） |
| Output Power： | 2dBi circular polarize antenna （Integrated） |
| Antenna： | Fixed Frequency Band and FHSS Software Programmabl |
| Communication Port： | RS485、Wiegand26、Wiegand34 |
| Power： | +12V |
| Power Consumption： | < 1W |
| Operation： | －20℃ ～ +70℃（Customized） |
| Humidity： | 20％ ～ 95％（without condensation） |
| Storage： | －40℃ ～ +125℃ |
| Update Time | Apr 24,2024 |
Yanzeo SR20 is a High Performance UHF integrated reader for long range operation. The reader operates in frequency range of 860MHz～960MHz design to read ISO18000‐6C and ISO18000‐6B protocol ID Tag.The reader can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
behind
Accessories
packaging
Long-distance Integrated Reader – 860～960MHz
Mainly used in business,payment,health care,tobacco,some industries,etc.
Technical Specification
|
ITEMS DESCRIPTION |
||
Model： | Yanzeo SR20 | |
System Parameter： | ARM7+UHF model | |
Operating Frequency： | International（920～925MHz） | |
USA（902～928MHz） | ||
EUR(865～868MHz) | ||
Others（Customized Tag） | ||
Read Range： | >2m | |
Group of reading performance： | >50pcs | |
Support Protocol： | Fixed Frequency Band and FHSS Software Programmable； | |
Frequency Hopping Mode： | Master‐Slave Mode（Online Mode）、Time Scheduled Modes、Trigger Mode | |
Operating Mode： | 0-30dBm（Adjustable） | |
Output Power： | 2dBi circular polarize antenna （Integrated） | |
Antenna： | Fixed Frequency Band and FHSS Software Programmable； | |
Communication Port： | RS485、Wiegand26、Wiegand34 | |
Power： | +12V | |
|
Prompt： |
Beep or LED light flash |
|
|
Beep or LED light flash |
< 1W |
|
OPERATING ENVIRONMENT | ||
|
Operation： |
－20℃ ～ +70℃（Customized） |
|
Humidity： | 20％ ～ 95％（without condensation） | |
Storage： | －40℃ ～ +125℃ | |
PHYSICAL PARAMETER | ||
Dimension： | 122x78x25MM | |
Net Weight： | 110G | |
Weight： | 210G | |
ACCESSORES | ||
Software Pack (Optional)： | API Software Development Kits complete with VB,C#Sample Program | |
Long-distance Integrated Reader – 860～960MHz
Specification
|
ITEM |
DESCRIPTION |
RED | +12V |
BLACK | GND- |
|
BLUE |
TRIGGER |
|
YELLOW |
RS485 R- |
ORANGE | RS485 R+ |
GREEN | DATD0 |
WHITE | DATD1 |
