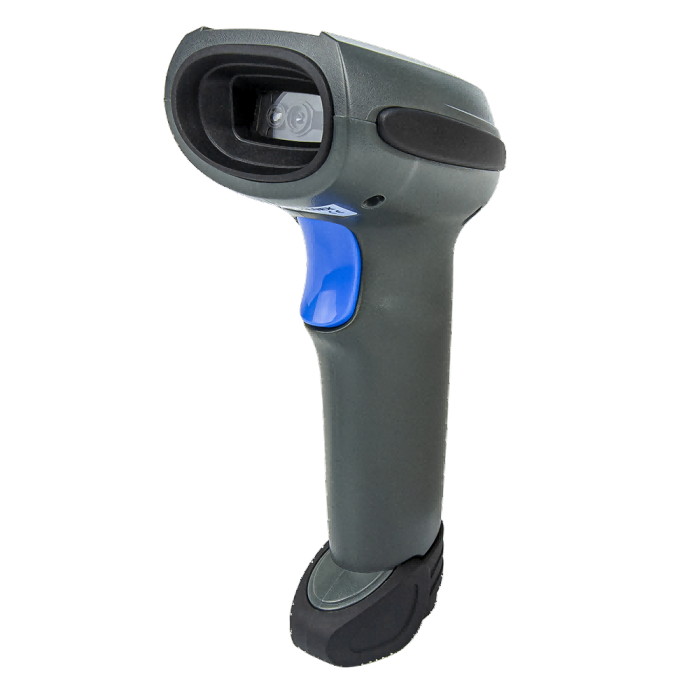

Yanzeo E9800 2D Scanner Industrial Rugged handheld Barcode Scanner High Definition 1D/2D IP68

Yanzeo E9800 2D Scanner Industrial Rugged handheld Barcode Scanner High Definition 1D/2D IP68

Yanzeo E9800 2D Scanner Industrial Rugged handheld Barcode Scanner High Definition 1D/2D IP68
Yanzeo E9800 2D Scanner Industrial Rugged handheld Barcode Scanner High Definition 1D/2D IP68Yanzeo E9800 2D Scanner Industrial Rugged handheld Barcode Scanner High Definition 1D/2D IP68Yanzeo E9800 2D Scanner Industrial Rugged handheld Barcode Scanner High Definition 1D/2D IP68Yanzeo E9800 2D Scanner Industrial Rugged handheld Barcode Scanner High Definition 1D/2D IP68Yanzeo E9800 2D Scanner Industrial Rugged handheld Barcode Scanner High Definition 1D/2D IP68
CategoriesHandheld Barcode Scanners
BrandYanzeo Pro RFID & BarCode Solutions
ModelE9800
Image (pixels)1280 pixels(H)*800 pixels(v)
Light SourceAiming:617 nm LED ;illumination:4500K LED
Scan AngleElevation angle 65°/Tilt angle 30°/Declination 55°
Field of view34° horizontal, 28° vertical
Read ResolutionMore than 5 mil
Print ContrastMore than 25%
Visual IndicatorBlue LED Lights , Double Buzzer
Interface2.4G or Bluetooth or USB cable
Dimension H x W x L:175mm*66mm*90mm(Length x Width x Height)
Weight220g (with cable)
CableStandard 1.8M straight
MaterialABS + PC
Storage Temperature-40℃~+70℃
Update TimeOct 13,2024
Detail Information
Yanzeo E9820i Wireless Rugged Barcode Scanner 1D/2D IP68 Handheld Bluetooth Barcode Reader
Product description

Auto-sensor

Drop test 2M

USB&RS232

Plug&play

Certificate

Features

●Supports USB, TTL-232 and Virtual serial port.

●Plug and play, not need any driver, easy to operate.

●Use Complete dust-proof design to meet more applications.

●Using latest decoder technology, can read all 1D and 2D barcodes.

●Ergonomic design, comfortable operating sense, it is not easy to fatigue.

●Supports to read screen barcodes, such as mobile phones and computers.

●Widely used in Wechat pay and Alipay, can quickly realize the ID and QR codes.

●Blue LED indicator and loud buzzer sound, can quick feedback reading recods.

●Read Micro QR, MicroPDF417,Maxicode, Aztec etc.

Application field

Mainly used in business,payment,health care,tobacco,some industries,etc.

Technical Specification

OPERATIONAL PARAMETER

Image (pixels)

1280 pixels(H)*800 pixels(v)

Light Source

Aiming:617 nm LED ;illumination:4500K LED

Depth of Filed

40-250mm@UPC/EAN13mil PCS=90%; 20-300mm@QR 20mil PCS=100%

EAN-13(13mil) 30-180mm

Code39(5mil) 0-90mm

Typical Depth of Field

PDF417(6.67mil) 5-90mm

Data Matrix(10mil) 0-60mm

QR Code(15mil) 0-130mm

Scan Angle

Elevation angle 65°/Tilt angle 30°/Declination 55°

Field of view

34° horizontal, 28° vertical

Read Resolution

More than 5 mil

Print Contrast

More than 25%

Visual Indicator

Blue LED Lights , Double Buzzer

Interface

TTL-232, USB (HID-KBW, Virtual serial Port)

PHYSICAL CHARACTERISTICS

Dimension H x W x L:

175mm*66mm*90mm(Length x Width x Height)

Weight

220g (with cable)

Cable

Standard 1.8M straight

Material

ABS + PC

POWER PARAMETER

Input Voltage

5VDC±10%

Working current

Working current

ENVIRONMENTAL PARAMETER

Operating Temperature

-20℃~+60℃

Working Humidity

5% to 95% relative humidity, non-condensing

Storage Temperature

 -40℃~+70℃

Light Levels

0~100,000Lux(Daylight)

Drop Durability

Designed to withstand 2 Meters drop

BARCODE TYPES


1D: UPC/EAN/JAN,UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &JAN-13,

ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN

128, Code 93, Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code, MSI/

Plessy, China Postal Code,Code 32 (Italian Pharmacode), RSS 14, RSS

Limited, RSS Expanded

2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack, Micro QR,DOTCODE.
